INCENSE STICK MAKING MACHINE

Original price was: ₹95,000.Current price is: ₹80,000.



Technical Information:

Feeder Speed :                         15,000-18,000 Sticks / Hour

240-300 Sticks/Hour

Power Consumption:              0.75kw/ 1hp

Motor Power:                            1hp

Net Weight:                               120 Kgs

Gross Weight:                           135 Kgs

Electrical System:                    Ac 220v (Single Phase)

Inverter Control Technology

Ac 380v (3 Phase)

Warranty:                                  12 Months

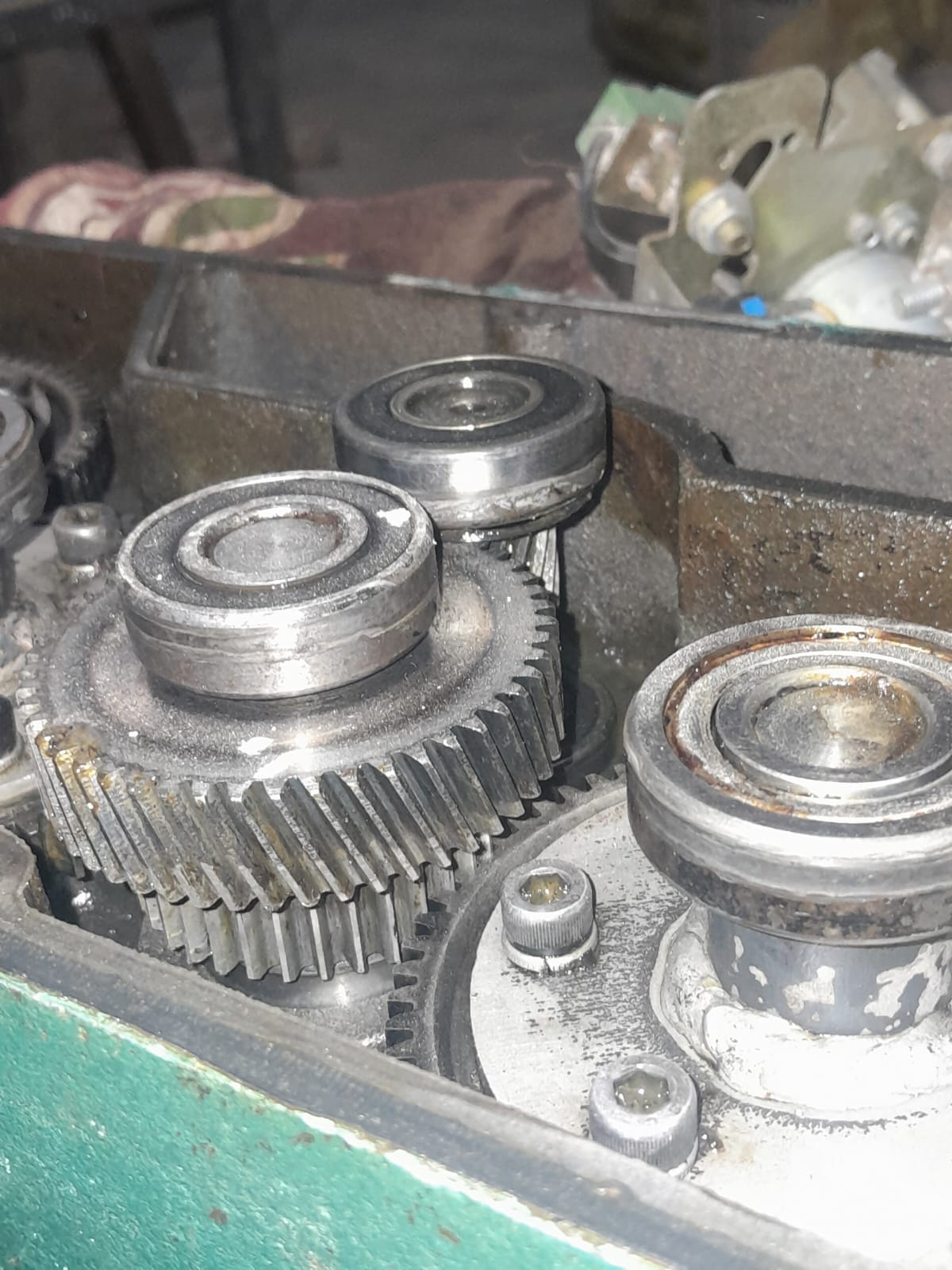

Gearbox:                                    6 Gear Heavy-duty Gearbox

(Japanese Technology Gear System)

Type Of Incense Production:  Length of Stick From 18cm to 40cm

(8 Inch, 9 Inch, 12 Inch)

Diameter Of Incense Stick:     2.8mm to 4.0mm

Diameter Of Bamboo Stick:     1.3mm

Category:

Description

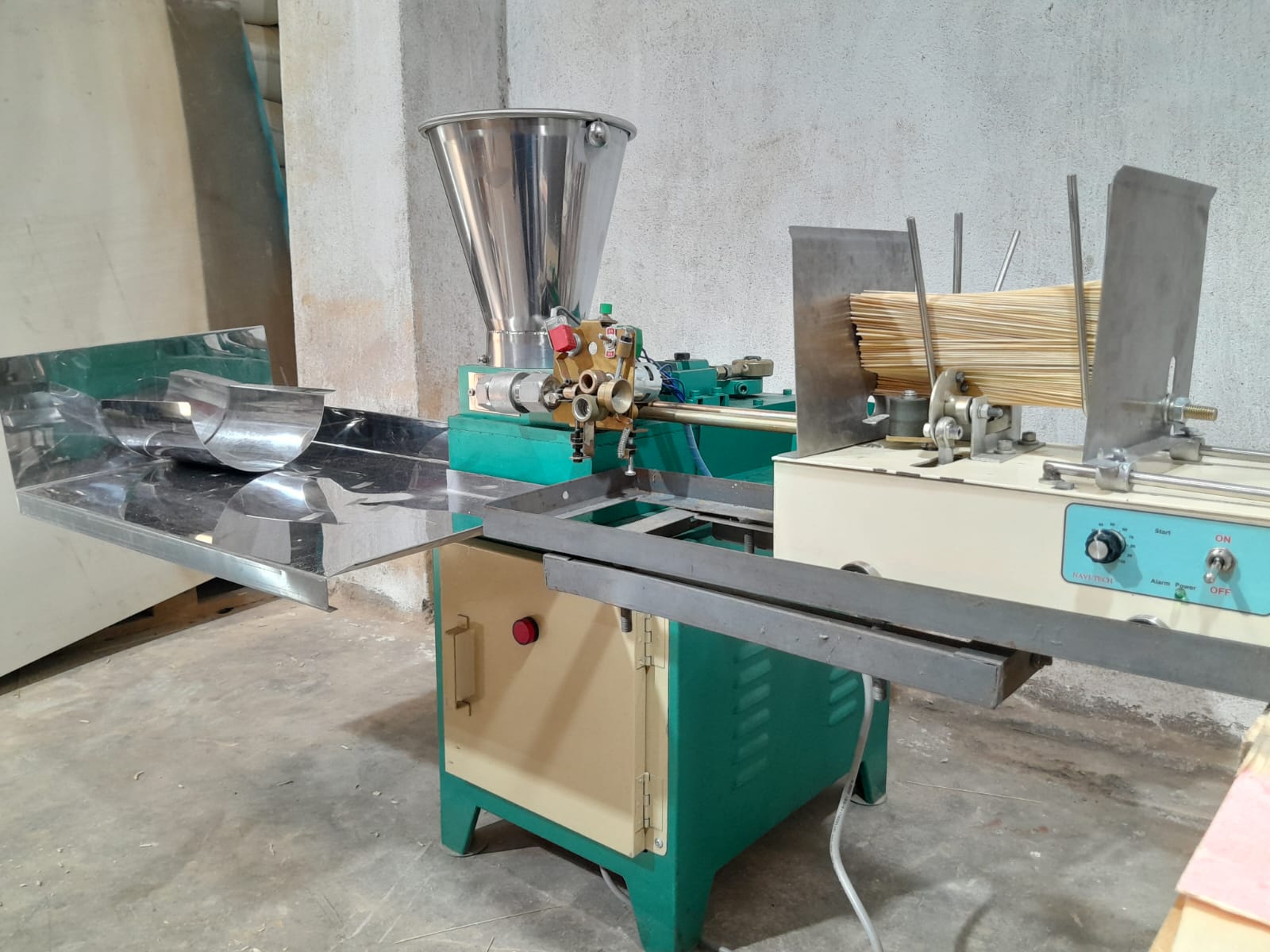

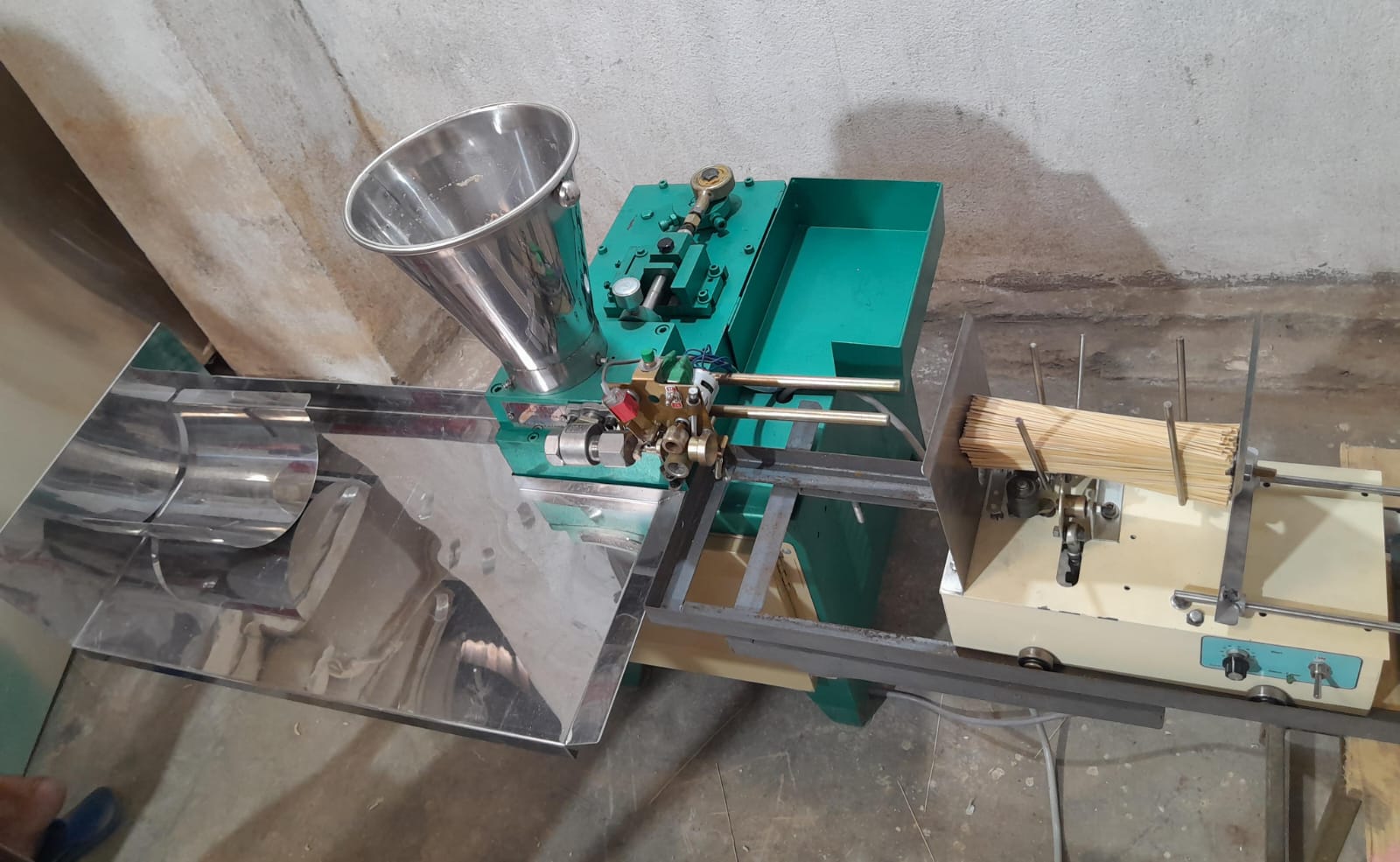

NAVI-TECH Incense Stick making Machine is a fully automatic, Heavy duty, high speed machine with Japanese Technology Gear Box. It increases productivity and efficiency while providing consistent quality and precision. It has power of 1 HP Motor and speed of 300 sticks per minute.

Specifications

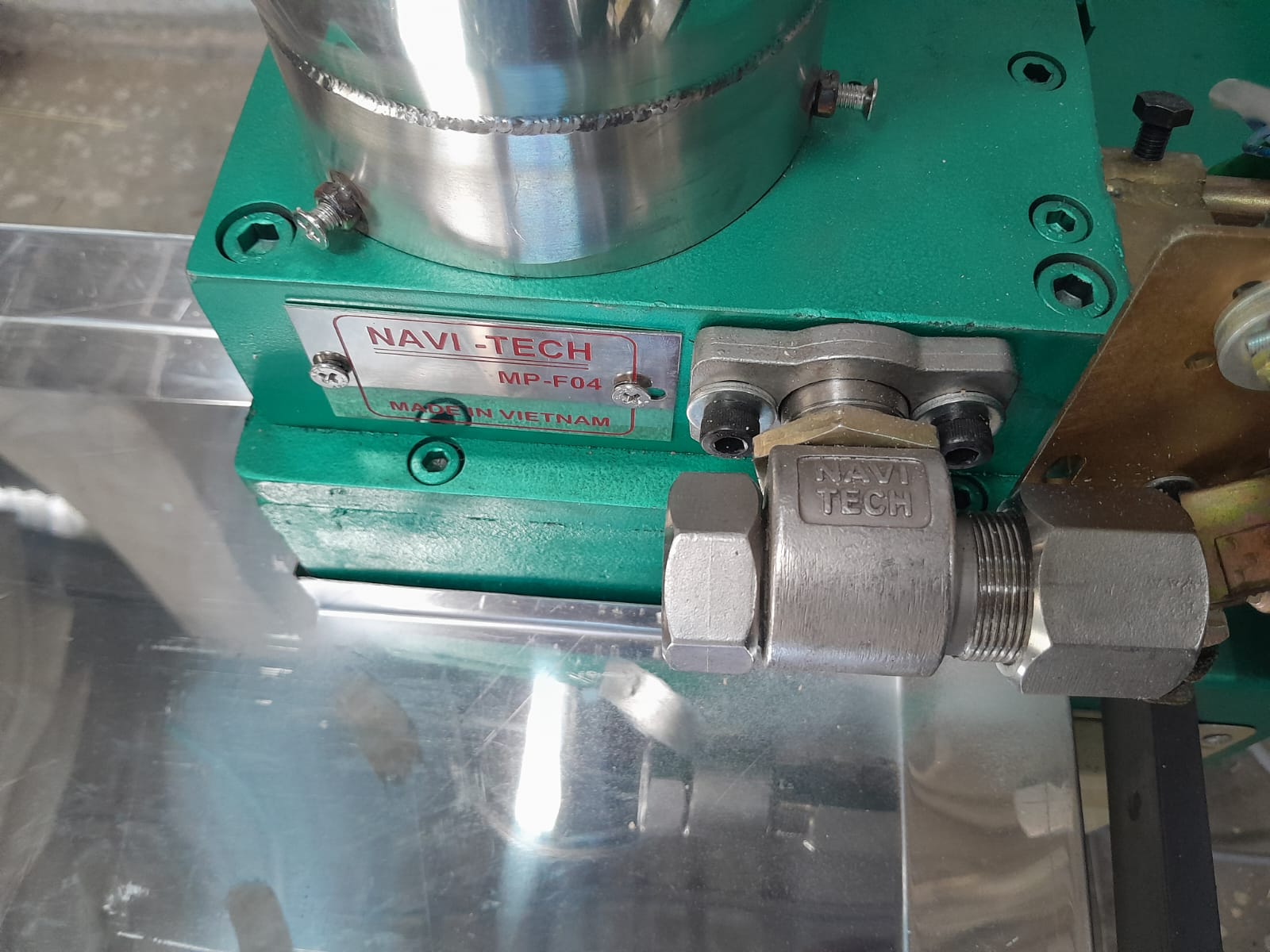

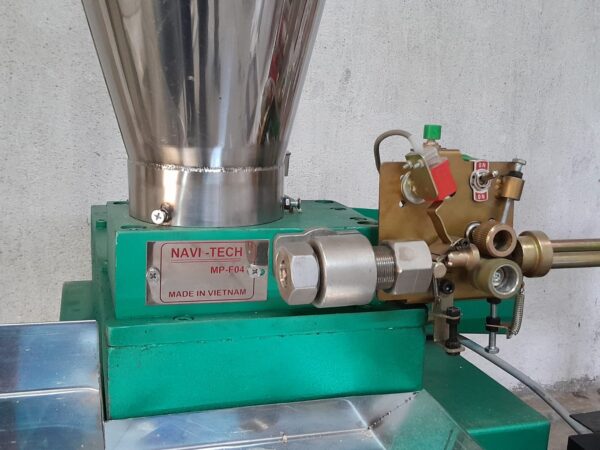

Model:                              MPF04

Power:                             0.75kw/ 1hp

Frequency:                      50/60 Hz

Input Voltage:                Single Phase 220v/ 3 Phase

Gearbox:                         Heavy-duty 6 Gear Gearbox

(Japanese Technology Gearbox System)

Machine Speed:             240-300 Sticks / Min

Max 300 Sticks Per Min

Type Of Stick:                Round

Diameter Of Stick:        2.8-4.0mm

Suitable Powder:           Wood, Charcoal

Machine Size:

Machine Weight:          120 Kgs (Net Wt.)

Packing Weight:           135 Kgs (Gross Wt.)

Advantages:

Fully automatic features

Heavy-duty gearbox (6 gears)

Noiseless machine operation

Material saving

Time saving

High productivity

Labour cost saving

High durability

Identical and nice product
